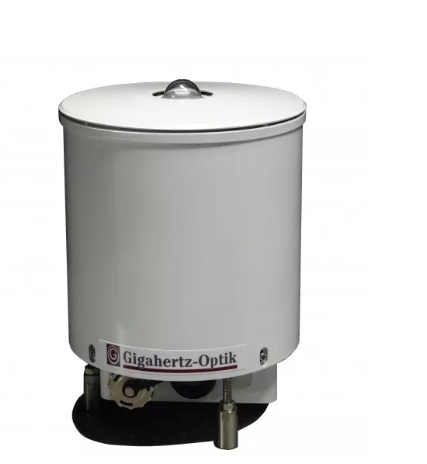

Gigahertz-Optik BTS2048-VL-TEC-WP Spectroradiometer (280 nm ~ 1050 nm)

-Measurement range:

Spectral: 0.5 lx to 1,000,000 lx 280 nm to 1050 nm.

Integral: 0.1 lx Noise signal up to 3E8 lx, photometric 360 nm to 830 nm

-Typical applications: CCD spectroradiometer for scientific measurements, solar cells, outdoor measurements, development tasks.

-Calibration: Factory calibration. Traceable to international calibration standards.

-Measured Quantity: Spectral irradiance (W/(m² nm)), illuminance (lx), peak wavelength, calculated quantities of the spectral power distribution, etc.

-Sensor:

Accuracy class B according to DIN 5032 and CIE No. 69

Accuracy class A for f1`, u, f3 and f4 according to DIN 5032 and CIE No. 69

-Input optics: Diffusor, cosine corrected field of view (f2 ≤ 3%)

-Filter wheel: 4 positions (open, closed, optical filters). Use for remote dark current measurement and dynamic range extension.

-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).

-Calibration uncertainty:

Spectral irradiance

Spectral irradiance responsivity (280 - 1050) nm. Standard calibration (350 - 1050) nm. Optional calibration (280 - 1050) nm.

-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control

-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485

-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms

-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA

-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA

-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)

-Software: User software S-BTS2048

Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.

-Dimensions: Diameter: 160 mm

Height: 222 mm

-Weight: 2.85 kg

-Mounting:

Tripod and M6 screw threads

Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL

-Temperature range:

Storage: (-10 to 50)°C

Operation: (10 to 30)°C

-Housing:

Spectroradiometer unit: IP67

Outdoor housing itself: IPx5

-Stability: inside WP housing (electronics): ≤ ±1°C

CCD Chip: ≤ ±0.25°C

Datasheet

Brochure
