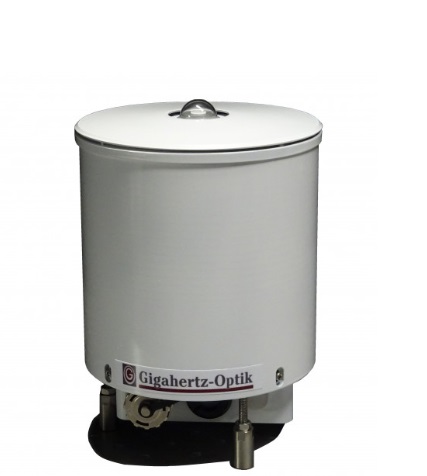

Gigahertz-Optik BTS2048-IR-WP Spectroradiometer (950 -2150 nm)

-Measurement range:

Spectral: 2E-4 W/(m²nm) to 1E4 W/(m²nm) @1600 nm. Responsivity from 950 nm to 2150 nm.

-Typical applications: Diode array spectroradiometer for R&D applications and for the integration in testing systems.

-Calibration: Factory calibration. Traceable to international calibration standards.

-Measured Quantity: Spectral irradiance (W/(m² nm)), irradiance (W/m²), spectral radiant intensity (W/(sr nm)), radiant Intensity (W/sr), peak wavelength, center wavelength, centroid wavelength, etc.. Option integrating sphere: in addition spectral flux (W/nm). Option goniometer:

-Input optics: Diffusor, cosine corrected field of view

-Filter wheel: 4 positions (open, closed, optical filters). Use for remote dark current measurement and dynamic range extension.

-BiTec: Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).

-Calibration uncertainty:

Spectral irradiance

Spectral irradiance responsivity (950 - 2150) nm

-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control

-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485

-Data transfer: Standard for 512 float array values via ethernet 5 ms

-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA

-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA

-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)

-Software: User software S-BTS2048

Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.

-Power Supply:

With power supply: DC Input 5V (±10 %) at 3000 mA

-Dimensions: Diameter: 160 mm

Height: 242 mm

-Weight: 1000g

-Mounting:

Tripod and M6 screw threads

Front adapter UMPA-1.0-HL for use with integrating sphere port-frame UMPF-1.0-HL

-Temperature range:

Storage: (-10 to 50)°C

Operation: (-25 to <45)°C

-Temperature range: Temperature stabilization chip: ≤ ± 0.25°C
