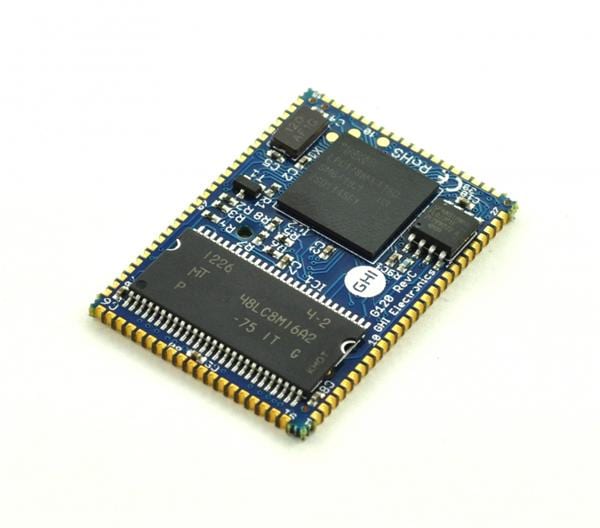

GHI Electronics G120B-SM-373 System-On-Modules - SOM G120 Module SOM .net MICRO FRAMEWORK

Flash: 4.5 MB

Frequency: 120 MHz

Dimensions: 38.1 mm x 26.67 mm

Memory Size: 16 MB

Memory Type: RAM

Unit Weight: 3 g

Installed RAM: 0 GB

Interface Type: 1-Wire, CAN, Ethernet, GPIO, I2C, PWM, SPI, UART, USB, WiFi

Processor Type: LPC1788

Processor Brand: NXP

Moisture Sensitive: Yes

Description/Function: G120 is a small surface mount System on Module hosting a 120 Mhz. ARM Cortex-M3 Processor with 4.5 MB flash and 16 MB RAM that runs Microsoft .NET Micro Framework (NETMF).

Maximum RAM Capacity: 16 MB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
