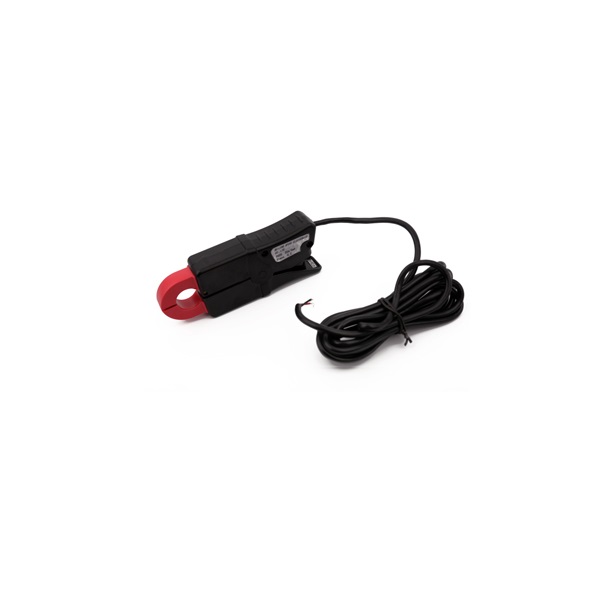

GFUVE XQ20 High Precision 200a AC Mini Clamp On Split Core Current Sensor (0 - 200A AC; 0 - 200mA AC)

Electrical parameters

Ratio: 1000: 1 or 2000:1 (customized)

Accuracy class: 0.1%, 0.2%

Primary current: 0 - 200A AC

Secondary current: 0 - 200mA AC (customized)

Max. Cont. Input current: 240A

Load capacity: ≤4Ω

Over voltage category: CAT III 600V

Output signal (AC current): From 0 to 200mA AC at nominal input current

Output signal (AC voltage): From 0 to 2V AC at nominal input current

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: Clamp type

Output mode: Lead output(2.5m)

Mechanical parameters

Dimensions (L x W x H) (mm): 52.5 x 137.5 x 28

Weight (g): 400

Holding wire diameter (mm): φ20

Max. jaw opening (mm): 20

Jaw color: Red, yellow, blue, green, black

Material: PC+ABS+Polycarbonate, UL94 V0
