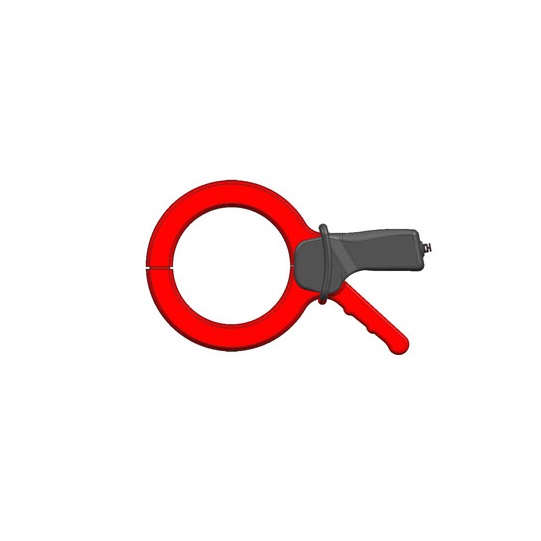

GFUVE S120 20K Hz Bandwidth 2000A Clamp on Current Transformer (2400A, 10Hz-2MHz)

ELECTRICAL PARAMETERS

Ratio: 1000: 1 or 2000:5 (customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 2000A AC

Secondary current: 0-2A or 0 - 5A AC (customized)

Secondary voltage: 0-2V AC (customized)

Max. Cont. Input current: 2400A

Over voltage category: CAT III 600V

Output signal (AC current): 500mA, 1A,2A,5A AC at nominal input current

Output signal (AC voltage): 1V, 2V, 10V AC at nominal input current

Frequency range: 10Hz-2MHz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -40°C to +55°C

Output: 2.5 meter cable with D01 connector or BNC

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1, IEC61869-2

Installation: clamp type

Output mode: lead output(2.5m, 5m or 10m)

Accuracy (2000A Range)

0-10A: ≤0.5%

10-100: ≤0.2%

100-2000A: ≤0.1%

Phase Shift(2000A Range)

0-10A: ≤0.5°

10-100: ≤0.2°

100-2000A: ≤0.1°

MECHANICAL PARAMETERS

Dimensions (L x W x H) (mm): 178 x 290 x 30

Weight (g): 1200

Holding wire diameter (mm): φ120

Max. jaw opening (mm): 120

Jaw color: Red & Grey

Material: PC+ABS, UL94 V0
