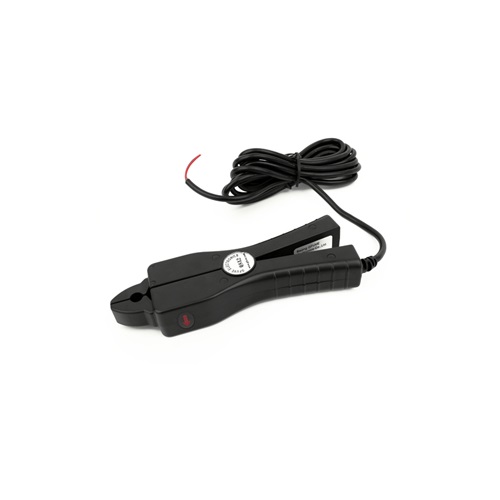

GFUVE Q8A-2 High Sensitivity 0.1% Permalloy Core CT AC Current Clamp

Electrical parameters

Ratio: 1000: 1 or 2000:1 (customized)

Accuracy: 0.1 %,0.2%

Primary current: 0 - 10A AC

Secondary current: 0 - 10mA AC or 0 - 100mV AC (customized)

Max. Cont.Input current: 12 A

Over voltage category: CAT III 600V

Output signal (AC current): From 0 to 10mA AC at nominal input current

Output signal (AC voltage): From 0 to 10mA AC at nominal input current

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: Clamp type

Output mode: Lead output(2.5m)

Mechanical parameters

Dimensions (L x W x H) (mm): 45x158x25

Weight (g): 250

Holding wire diameter (mm): φ8

Max. jaw opening (mm): 8

Color: Black

Material: PC+ABS+Polycarbonate, UL94 V0
