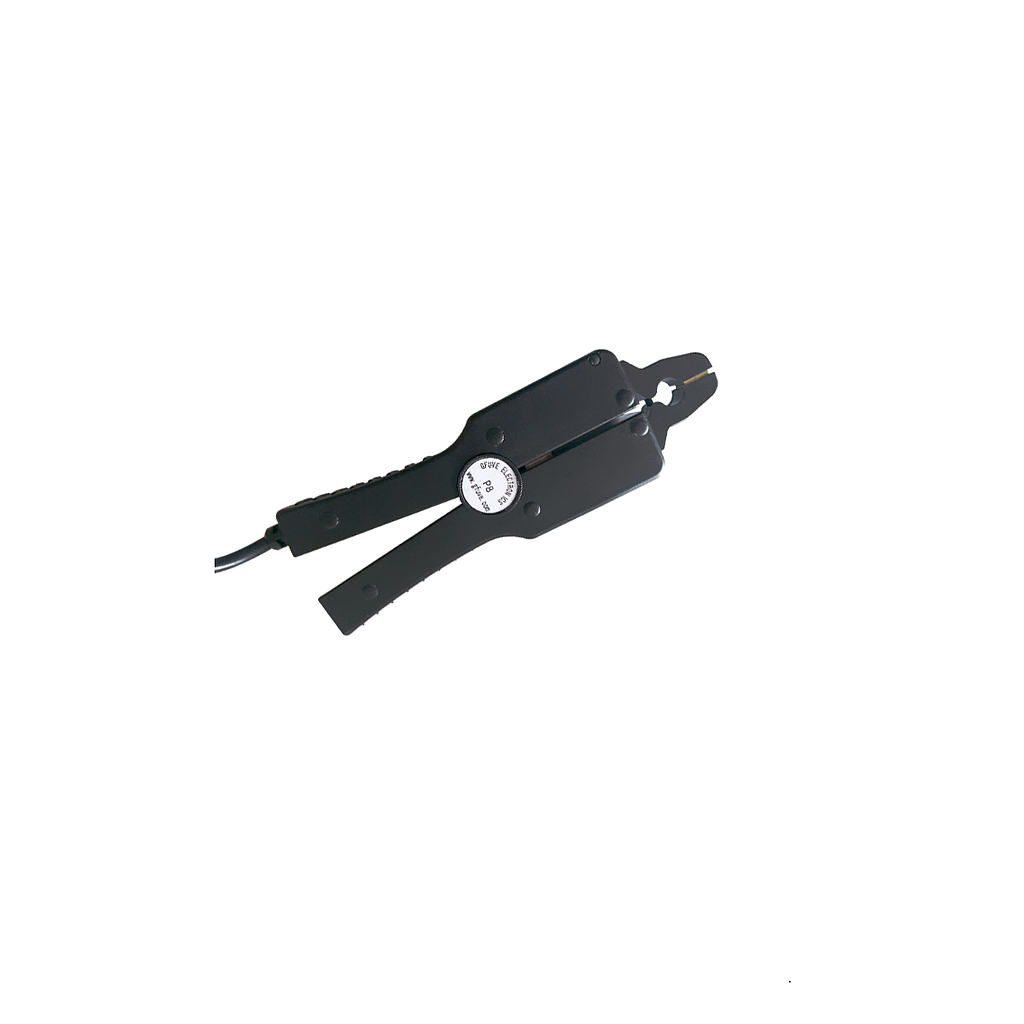

GFUVE P8 Wholesale Top Quality 5A AC Current Clamp CT (20A)

ELECTRICAL PARAMETERS

Ratio: 2500: 1, 2000:1 or 1000:1 (customized)

Accuracy class: 0.2%, 0.5%

Phase shift: <10'

Primary current: 0 - 10A AC

Secondary current: 0 - 10mA AC (customized)

Secondary voltage: 0.25V, 0.5V AC

Max. Cont. Input current: 20A

Load capacity: ≤4Ω

Over voltage category: CAT III 600V

Output signal (AC current): From 0 to 10mA AC at nominal input current

Output signal (AC voltage): From 0 to 0.5V AC at nominal input current

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1minute

Temperature range: '-20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 720 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: clamp type

Output mode: lead output(2.5m)

MECHANICAL PARAMETERS

Dimensions (L x W x H) (mm): 42× 139 × 20

Weight (g): 180

Holding wire diameter (mm): φ8

Max. jaw opening (mm): 8

Color: Black

Material: PC+ABS+Polycarbonate, UL94 V0
