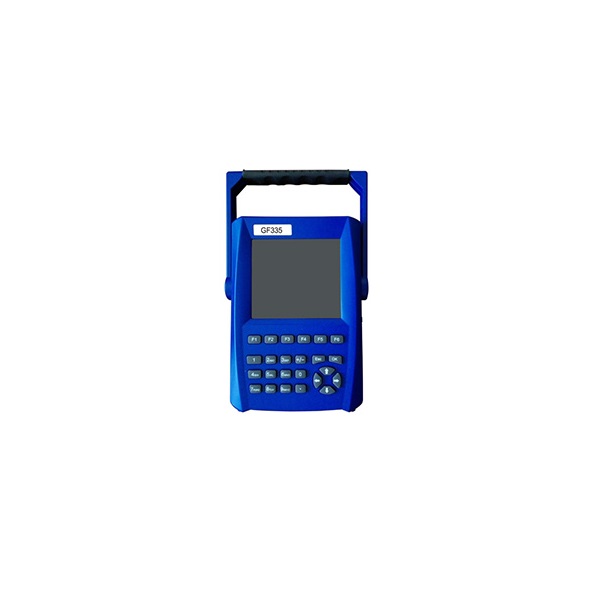

GFUVE GF335 Portable Three Phase Harmonics Power Quality Analyzer (0-1200V; 0-500A)

Voltage Range / Resolution / Accuraccy: 0-1200V / 0.001V / 0.1%/0.05%

Current Range / Resolution / Accuraccy: 0-500A / 0.001A / 0.1%/0.05%

Clamp-on Range / Resolution / Accuraccy: 0.01-100A / 0.01A / 0.15%

Frequency Range / Resolution / Accuraccy: 45-65Hz / 0.001Hz / 0.01Hz/0.002Hz

Active power Range / Resolution / Accuraccy: 0 ~ ±Umax x Imax / 0.01W / 0.5%/0.2%

Reactive power Range / Resolution / Accuraccy: 0 ~ ±Umax x Imax / 0.01Var / 1%/0.5%

Apparent power Range / Resolution / Accuraccy: 0 ~ ±Umax x Imax / 0.01VA / 1%/0.5%

Harmonic: 2nd-64th

Power factor　Range / Resolution / Accuraccy: 0 ~ ±0.9999 / 0.0001 / ±0.001/±0.0005

Phase Range / Resolution / Accuraccy: 0-359.999° / 0.005° / ±0.05°/±0.02°

ELECTRICAL PARAMETERS

Power supply: One-phase power supply (85-265VAC/45-70Hz)

Lithium battery, 5000mAh

Communication port: RS232

Energy constant: 3600imp/kWh, 360000imp/kWhx4

Frequency influence: ≤20ppm/Hz

Pulse interface: TTL energyx6

MECHANICAL PARAMETERS

Main machine (L×W×H) (mm): 240 x 157 x 60

Weight (kg): 1.5

Carrier dimension (L×W×H) (mm): 470 x 380 x 220

Carrier weight (kg): 10.6 (Including three clamp-on (100A), wires and software)

ENVIRONMENTAL CONDITIONS　　　　

Environment: -10 ~ +55°C, 15-85%RHD

Altitude (m): -10 ~ 3500

Temperature: -20°C ~ 65°C

Temperature: ≤25ppm/°C (U/I), ≤50ppm/°C (others)
