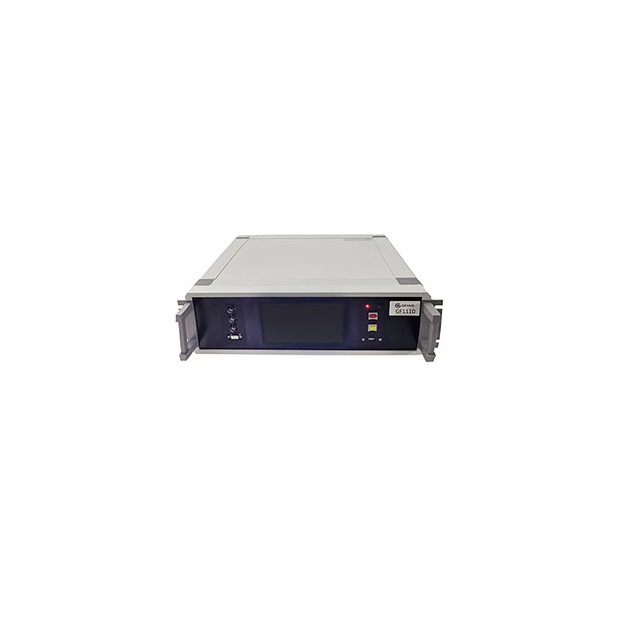

GFUVE GF111D DC Power Source with DC Energy Meter Calibrator (500A 1000V)

ELECTRICAL PARAMETERS

Accuracy: 0.05%, 0.02%

Power Supply: One Phase AC 180-265V, frequency 50/60Hz.

DC Voltage measurement

Range: 10mV, 100mV, 1V, 10V, 30V, 100V, 300V, 1000V (max 1200V)

Accuracy: ±(0.012%RD+0.008%RG)

DC Current measurement

Range: 0.7mA, 3.5mA, 14mA, 35mA, 140mA, 700mA, 1A, 2A, 5A, 10A, 20A, 50A, 100A, 500A (max 600A)

small signal 2.5mV, 20mV, 100mV, 1V, 5V

Accuracy: ±(0.012%RD+0.008%RG)

DC Power measurement

power accuracy: ±0.02%

DC Power Energy Measurement Error

power energy: ±0.02%

Power Pulse Output

Power Pulse Output: 20KHz

Power Pulse Input

Energy pulse input: 20KHz

Communication port: USB port, RS232, 10/100M LAN

MECHANICAL PARAMETERS　

Dimensions (W×D×H) (mm): 400x440x290

Weight (kg): 12

ENVIRONMENTAL CONDITIONS　

Ambient temperature: -10°C ~ +40°C

Relative humidity: 35% ~ 38%
