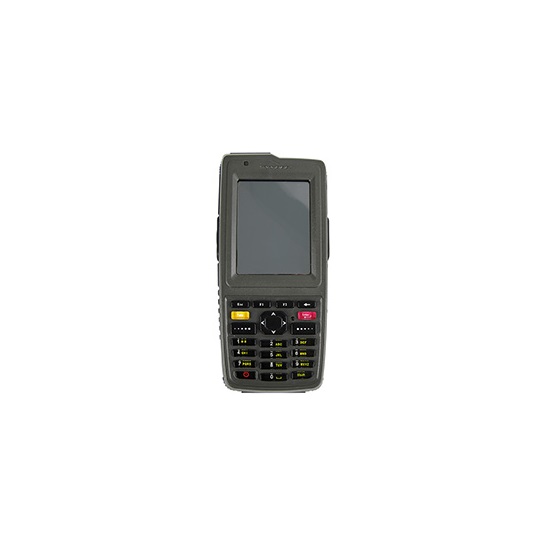

GFUVE GF1100 Handheld Logistic and Warehouse Management Terminal (ARM926, 400MHz)

BAISC PARAMETERS　

CPU: ARM926, 400MHz

Memory: RAM 512MB, Flash 64MB

TF card can expend ~ 32GB

Display: 2.8 Inch TFT display, 320×240piexl, 26 thousands color

Keypad: 21 keypads

Communication: USB2.0, RS232, RS485

Wireless communication: WIFI, Bluetooth, GPRS are optional

Scan module: 1D laser, IRDA

Battery: 3.7V lithium battery, 2800mAH

Drop height range: 1.2 M

Sealed classes: IP54

The specifications of laser security: Meet IEC Class 2/FDA Class II, IEC60825-1/EN60825-1

MECHANICAL PARAMETERS　

Weight (g): 405 (including battery)

Dimensions (LxWxH) (mm): 160×58×42

ENVIRONMENTAL CONDITIONS　

Work temperature: -20°C ~ +50°C

Work humidity: 5% - 90% (without condensation)

Storage temperature: -30°C ~ +70°C

Storage humidity: 5% - 95% (without condensation)
