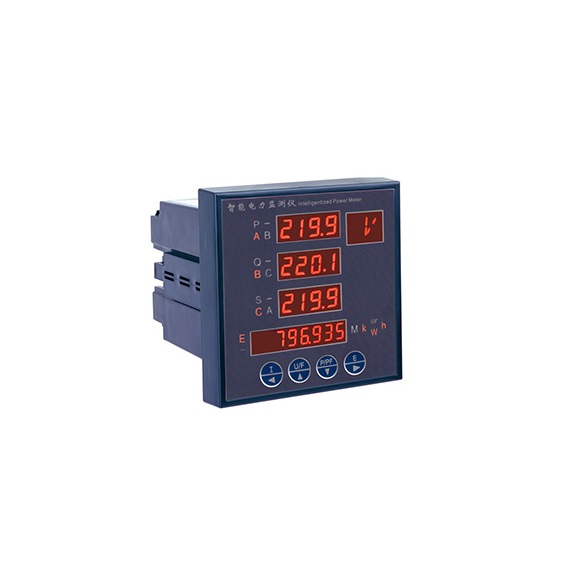

GFUVE FU2030 Multifunction Mini Digital Panel Power Meter

Electrical parameters　

Power supply (AC/DC):

AC 85-265V/DC 85-330V

Power consumption: <6VA

Measurement parameters:

Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF;

Active Power (W); Reactive Power (Q); Apparent Power (S)

Computation:

Forward active power energy

Reverse active power energy

Forward active power energy

Reverse reactive power energy

Measuring range: 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1

Measuring accuracy:

Frequency: 0.1%

Electric energy: 0.5%, 1.0%

Voltage: 0.2%±0.1V

Current: 0.2%±0.001A

Power: 0.5% ±0.4W

Power Factor: 0.5% ±0.001

Display: LED Display, 4 Displays. 4 operation keys.

Communication: RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol.

Analog output (expansion module): DC 4-20mA output, programmable to any measured parameters.

Programmable:

Measuring System : 3P4W/3P3W etc.

Transformation Ratio : PT, CT.

Communication:

Address: 1-247; Baud: 1200-19200; Parity Bit: N/E/O

Energy: Reset

Connection mode: 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W

Mechanical parameters　

Dimensions (mm):

Mounting panel: 120x120

Thickness: 21

Depth: 118

Mounting:

Panel mounting

Trepanning: 92x92mm

Environmental conditions　

Temperature: -25 to +55°C

Humidity: 20%-95%RH, without condensation
