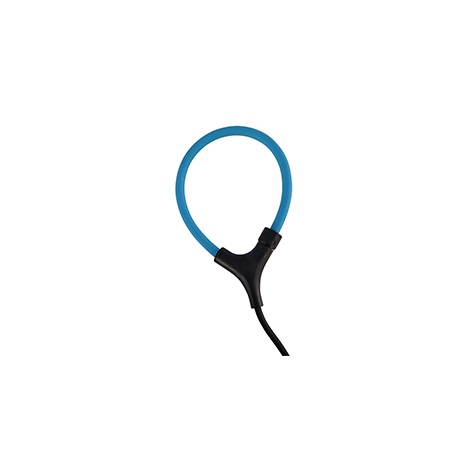

GFUVE FQ-RCTA01-55 Flexible Rogowski Type Clamp On AC Measurement Current Probe (10A~6000A)
ManufacturerGFUVE(View more products from this manufacturer)
ModelFQ-RCTA01-55
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Current Range: 10A~6000A
Frequency: 45Hz~600Hz
Output voltage
Rated current: 250A, 500A, 800A, 1000A
50Hz: 333mV; 1mV/A
Max output: 3.0V AC max
Accuracy: <1% @25°C (45-65Hz)
Phase error: <60’ @25°C (45-65Hz)
Output sensitivity: 1%
Linearity error: ±0.2%
Position sensitivity: ±2%
External influence: ±1.5% Max
Power supply: 10-30VDC,30mA Max.
