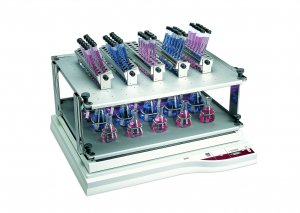

GFL 3020 Orbital Shaker (20 - 250 rpm, control digital, RS232)

Load capacity: 30 kg
Control: digital
Shaking platform: 676 x 540 mm
Shaking frequency: 20 - 250 rpm
Shaking amplitude: 32 mm
Serial interface: RS232
Timer: 1 minute - 99:59 hours or continuous operation
Ambient temperature: +10 °C to +50 °C
Exterior dimensions (W x D x H): 745 x 730 x 135 mm
Electrical connection: 230 V * / 50 or 60 Hz ** / 90 W
Gross weight: 40 kg

Catalog

 Specifications and features
    Dependable, long-life Orbital Shaker with a large shaking tray for accomodating heavier loads.
    User-friendly microprocessor technique
    Excellently applicable for continuous operation.
    Universally applicable through the large amplitude, low noise.
    Digital shaking frequency readout and setting via LC-display, in steps of 1.0 rpm, gentle start-up.
    Remaining time indication through LC display.
    RS 232 serial interface for trouble-free data transfer.
    Clearly laid out control panel for easy operation.
    An a.c. motor with overload protection drives the unit.
    Compact, low-wear counterbalanced drive mechanism.
    Constant speed, independent of load.
    Large shaking platform made of electrolytically galvanised, powder-coated sheet steel, equipped with four support rods with screw-type clamps for secure attachment of accessories.
    Special rubber pad ensures a non-slip grip of objects on the shaking tray.
    Housing made of high impact strength polystyrene.
    Comprehensive range of accessories
Applications: This powerful orbital shaker is preferably used for e. g. analytical or diagnostic applications in the pharmaceutical industry, chemistry, biology, in plant breeding or nutritional industry.
It is well-suited for use in laboratories, incubation and moderating rooms in ambient temperatures between +10 and +50 °C.
