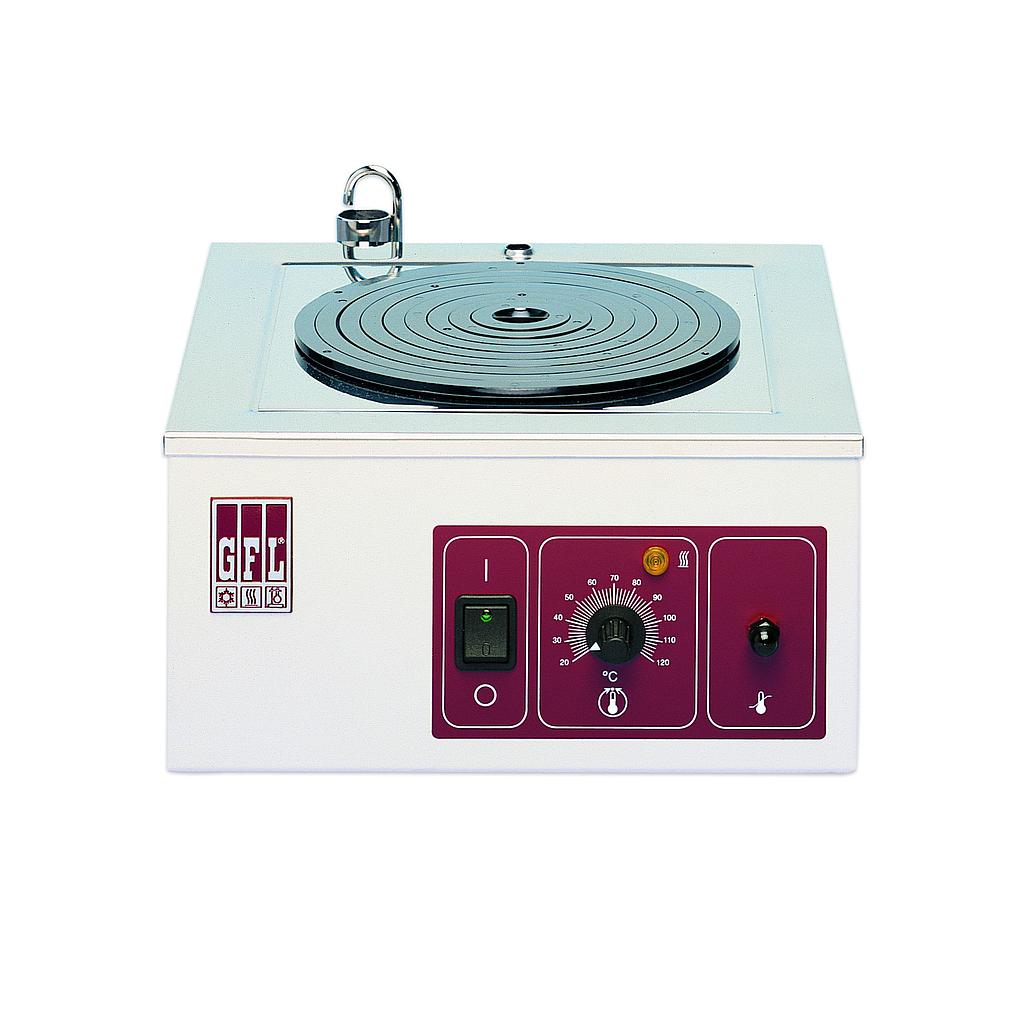

GFL 1023 Water Bath for evaporation (7 liter, to 99.9 °C)

Capacity: 7 liter
Temperature range: from approx. 5 °C above ambient to +99.9 °C
Ø of the openings: min. 32.5 / max. 173.5 mm
Interior dimensions (W x D x H): 240 x 240 x 120 mm
Exterior dimensions (W x D x H): 342 x 400 x 180 mm
Electrical connection: 230 V / 50...60 Hz / 1.0 kW *
Gross weight: 9.4 kg
Packing volume: 0.10 m3

Catalog

 Specifications and features
    Temperature control by tension thermostat.
    Protection of the heating element by over-temperature cut-out.
    Removable square cover plate (W 265 mm x D 265 mm).
    9-part ring set made of heat-resistant plastic. The diametre of the opening can be varied in approx. 20 mm steps.
    Heating element, bath interior, frame and perforated floor above the heating element are made of stainless steel.
    Corrosion proof exterior housing made of electrolytically galvanised sheet steel, powder-coated.
    The adjustable water level regulator 1919 as well as the 9-part ring set are included in the standard scope of supply.
Applications: For gentle steaming work with Erlenmeyer flasks and beakers.
