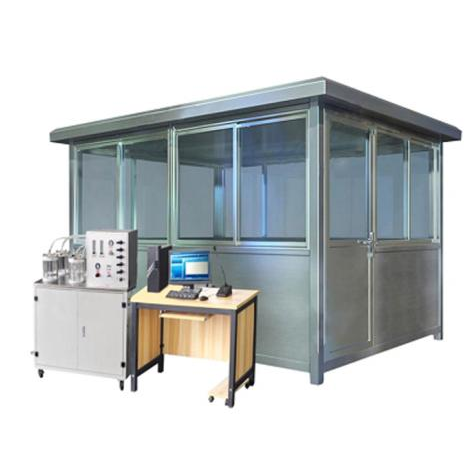

GESTER GT-RA08B-1 Masks Leakage Tester

Test the particulate leakage rate (TIL & IL) of mask, full face mask, breathing apparatus and gas mask

Test aerosol: NaCl

Aerosol concentration detector: Flame photometer (2sets)

NaCl aerosol generator: Particle concentration: 4mg/m³～12mg/m³

Aerodynamics size distribution of particle: approx 0.02～2um

Mass median diameter: approx 0.6um

Aerosol occurrence amount: ≥ 100L/min

Sampling pump adjust range: 0.50～4L/min

Particle sampling flow: 1～2L/min

Aerosol concentration detector dynamic range: 0.001～200mg/m³, accuracy 1％, response time ≤500ms

Power requirement: 1phase 220V 50Hz, 2KW

Air requirement: 0.5MPa, 120L/min

Dimension:

Outer size of testing room: 2000mm×1600mm×2600mm(L×W×H)

Control cabinet: 880mm×520mm×1400mm (L×W×H)
