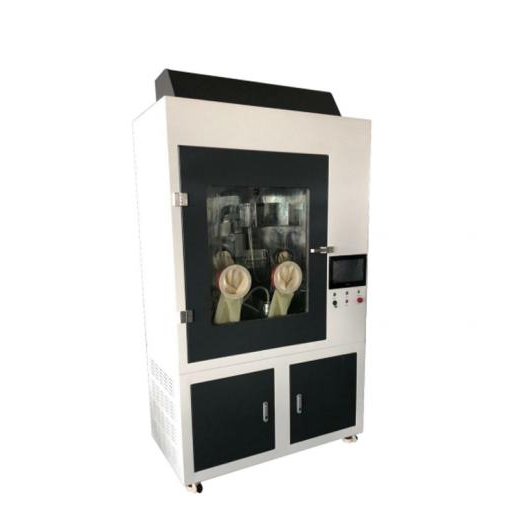

GESTER GT-RA02B Mask Bacterial Filtration Efficiency (BFE) Detector

A Route Sampling Flow: 28.3L/min, 0.01L/min

B Route Sampling Flow: 28.3L/min, 0.01L/min

Pressure of A Route Sampling Flowmeter: (-5000～0)Pa

Pressure of B Route Sampling Flowmeter: (-5000～0)Pa

Pressure of Spray Flowmeter: (0～300)kPa

Vacuum Pump: the maximum flow rate :57LPM;

Equipped with silencer, stable air flow, negative pressure: -900pa

Peristaltic Pump Flow: (0.01～3.0)mL/min

Working Temperature: 0-50℃

Total number of positive quality control sampler particles: (2200±500)cfu

Negative Chamber Flow Speed: ≥5m3/min

Internal dimensions of operation Chamber: 740×940×440mm (L×W×H)

Size of Main Machine: 1200×650×2100mm (L×W×H)

Power Supply: AC220V±10%, 50Hz

Noise of the Tester: ＜65dB(A)

Weight: ≈200kg

Power Consumption: ＜1500W

Standard Accessories:

• Air compressor 1set

• Petri dish 12pcs

• Test tube 1set

• Air pipe 3m

• Measuring cup 1pc

• U disk 1pc
