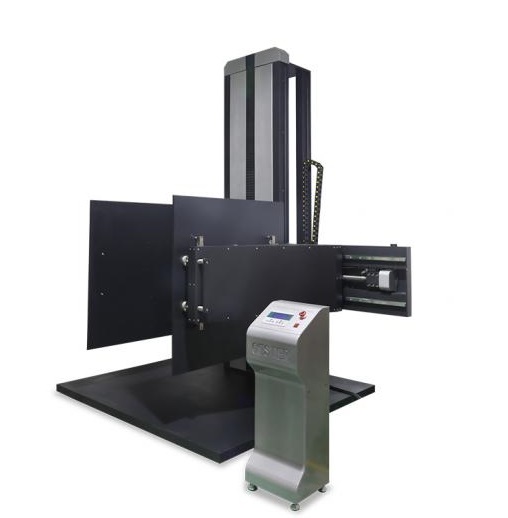

GESTER GT-N55 Packing Clamping Force Tester (400~3000lb)

Max. Capacity: 400~3000lb

Max. Specimen weight: 600kg(can be customized)

Power Controller: window 7, RS-232port

Sensor: 6 units

Force Unit: Kgf/N/Lbf

Sensor Accuracy: 1/250,000

Load precision: In±0.25%

Smoothness: within ±2.5mm

Sensor resolution: 1/250,000

Clamping Plate Size: Height 48 inch, depth 48 inch

Clamp Plate Adjustable height: 0-1000mm

Clamp Plate Adjustable width: 200-2000mm

Base plate size: 2200×2100mm

Test speed: 0.25~2.5mm/sec (according to ISTA 6 -SAMS CLUB)

Packing dimension: 11.2CBM

Gross weight: 1000 kg

Power supply: Three-phase, 380±10%, 50/60HZ (Can be appointed)
