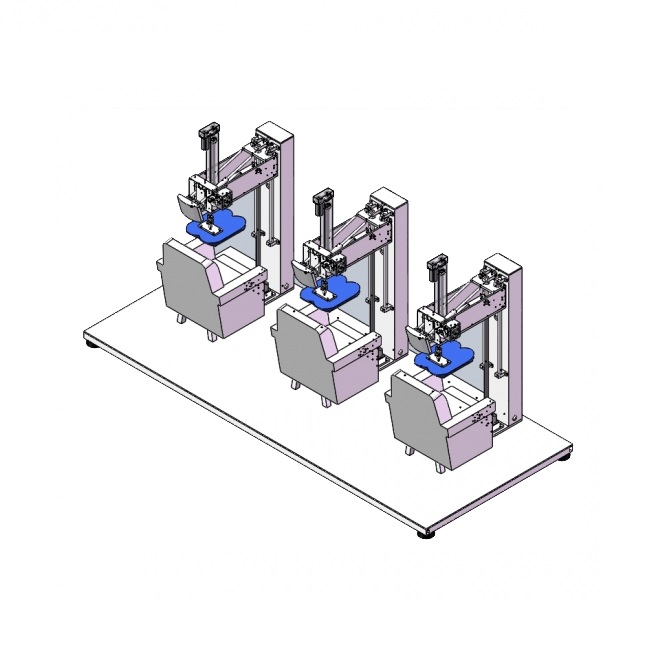

GESTER GT-LB04C Three Stations Chair Seating and Back Testing Machine

The tester tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat

Working position: 3

Seat surface load capacity: 2000N

Backrest load capacity: 2000N

Seat surface height: 15-70cm

Testing time: 0-99999 (can be adjustment)

Control method" PLC touch screen control

Power: 1 phase AC 220V 50/60Hz

Dimension (WxDxH): 300x200x200cm

Weight: 1000kg

Standard accessories:

1pc: GT-LB01-1A Loading point template;

3pcs: GT-LB01-2A Seat loading pad;

3pcs: GT-LB01-3 Smaller seat loading pad;

3pcs: GT-LB01-4 Back loading pad;

3pcs: GT-LB01-5 Local loading pad;

3pcs: Stationary fixture;

6pcs: Stops
