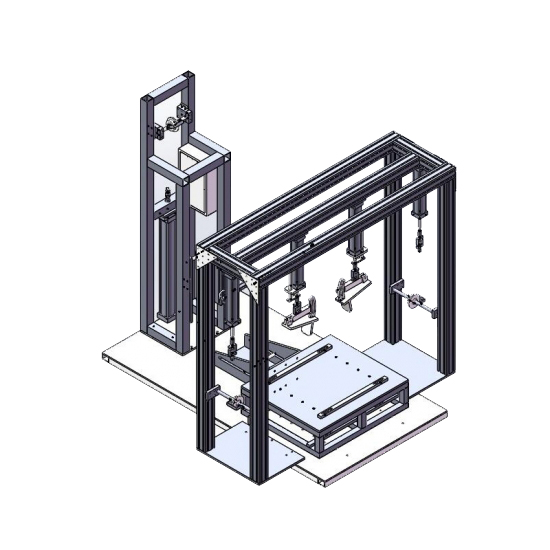

GESTER GT-LB02 Arm Rest and Seat Back Testing Machine (2000N)

The tester tests the strength and durability of the arm, seats, back or other parts by simulating the loading of the seats during routine use.

Load capacity: 2000N

Force device stroke: 0-80cm

Stroke range: 60-160cm

Load Angle: 0~10° (The angle to the vertical is adjustable)

Test speed: 5~40 times/min

Testing time: 0-99999 (can be adjustment)

Control method: PLC control D1-1

Dimension (WxDxH): 150x150x190cm

Weight: 600kg

Power: 1 φ, AC 220V 50HZ

Standard Accessories:

2 pcs: GT-LBO1-3 Smaller seat loading pad;

2 pcs GT-LBO1-5 Local loading pad;

2 pcs: GT-LBO1-8 203mm loading pad;

2 pcs: Arm rest loading pad;

1 pc: GT-LBO1-10B BIFMA Cumulative Weight;

1pc: Seat back fixture;

1pc: Bifma Arm rest pull-down loading pad;

1pc: Stationary fixture;

2pcs: Stops
