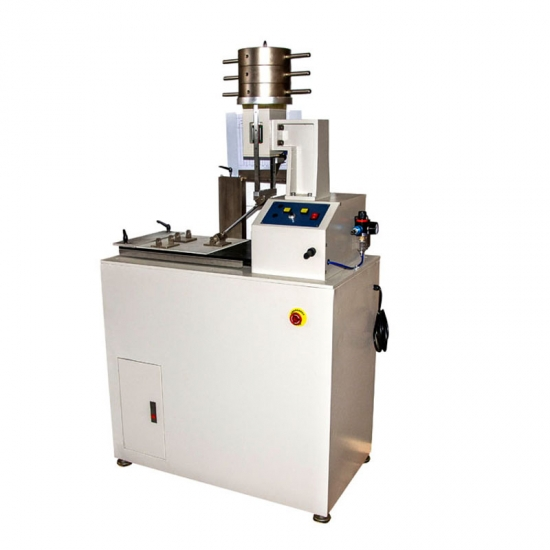

GESTER GT-KB36 James Slip Resistance Property Tester

Determine the dry static coefficient of friction of shoe sole and the heel materials

Weight: 25 lb x 3 pieces

Weight supporter: 5 lb

Speed of test table: 1``/ sec(25.4mm/sec)

Area of test table: 12`` x 12`` (305 x 305 mm)

Specimen (L x W x T): 3``x 3``x 0.25` ( 76 x 76 x 6.4 mm)

Power supply: 1∮AC 220V 50/60HZ

Dimensions (W x D x H): 102 x 52 x 180 cm

Weight: 150 kg

Standards: ASTM F489, ASTM D2047

Standard accessories:

• Sample clamp plate

• Recording paper

• 25lb weight

• Power line

•


Optional acceesories: Air compressor

Datasheet
