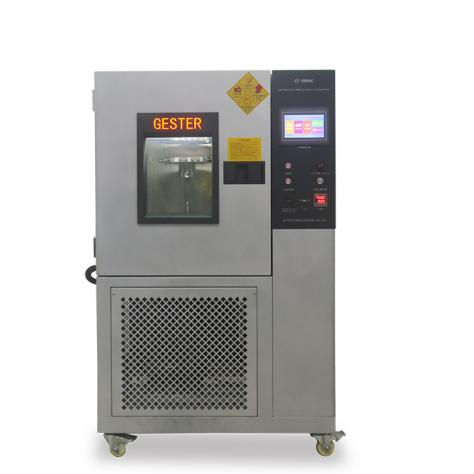

GESTER GT-KB08C Low Temperature DeMattia Flexing Tester

Determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials

Clamps Max. Apart: 70mm(Adjustable)

Moving Clamp Stroke: 57mm

Clamps Min. Apart: 13mm

Number of Specimen: 12pcs

Counter: LCD, 0- 999, 999

Flexing Speed: 5.0Hz ± 0.2Hz(300 ±12r/min)

Sample Size: (37.5±1)mmx125mm

Control System: Touch Screen Programmable Microprocessor Control

Temperature Range: -40~100℃

Temperature Accuracy: +/-0.5℃

Humidity Accuracy: +/-1%RH

Power Supply: 1∮AC220V 50/60HZ

Inside Chamber Capacity: 150L

Chamber Material: SUS # 304 Stainless Steel and Painted

Dimensions: 110X170X180 cm

Weight: 400kg

Standards accessories:

• Locating rod

• Wrench

Optional accessories: Pneumatic Sample Cutting Machine
