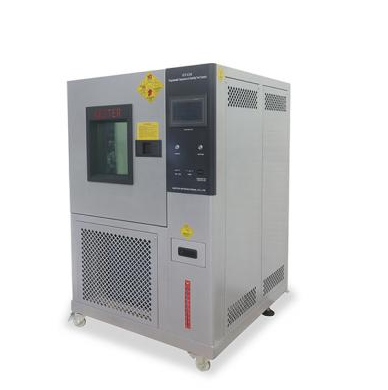

GESTER GT-KB05B Low Temperature ROSS Flexing Tester (90±2°, 0~110 cpm)

Determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials.

ROSS Flexing Parameters:

Fixture: 6 sets, can test 12pcs samples

Bending Angle: 90±2°

Bending Speed: 0~110 cpm (adjustable)

Winding Shaft Radius: 5± 0.3mm

Specimen Dimension: 152 * 25mm

Counter: LCD, 0~99,999,999

Control System: Touch Screen Programmable Microprocessor Control

Temperature Range: -40~100℃

Temperature Accuracy: +/-0.5℃

Inside Chamber Capacity: 150L

Chamber Material: SUS # 304 Stainless Steel and Painted

Power Supply: 1∮AC220V 50/60HZ

Dimension(W×D×H): 110X170X180 cm

Weight (Approx): 400 kg
