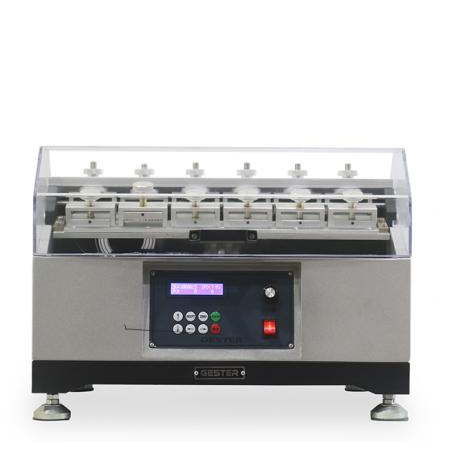

GESTER GT-KB05A-2 ROSS Flexing Tester (90±2°, 60± 5 cpm)

Determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials

Fixture: 6 sets, can test 12pcs samples

Bending angle: 90±2°

Bending speed: 60± 5 cpm

Winding shaft radius: 5± 0.3mm

Specimen dimension: 150±5 * 25±2mm

Counter: LCD, 0~99,999,999

Dimension(W×D×H): 80×42×45cm

Weight (about): 60 kg

Power supply: 1∮AC 220V 50/60HZ 3A

Standards: SATRA TM60, BS5131 : 2.1,

GB 20265, ISO 5423, ISO4643

HG/T2411, ISO 20344 Section 8.5

Standard accessories:

• Chisel cutter(2.5mm) for GT-KB05A-1

• Chisel cutter(2mm) for GT-KB05A-2

• Power line

Datasheet
