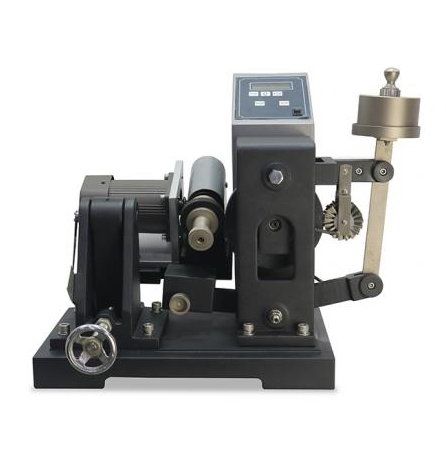

GESTER GT-KB04C Rubber Akron Abrasion Tester (45N)

Determine wear resistance of vulcanized rubber and elastic material products, like shoes sole, tires, vehicle tracks, by measuring its wear volume caused by rubbing between specimen and sandwheel

Sand Wheel: Outer Diameter Φ150mm, 25mm(w), granularity 36#, Abrasive material: Alumina

Rubber wheel:

Outer dia. 63.5mm,

Inner dia. 12.7mm,

Thickness: 12.5mm

Rubber axle inclination angle range: 0~35° adjustable（test angle 15° or 25°）

Rubber axle rotating speed: 250±5 rpm

Load: 45N

Counter: LCD, 0~99,999,999

Dimensions ( L x W x H ): 60 × 50 × 45cm

Weight: 60 kg

Power: 1∮, AC220V, 50/60Hz

Standards: BS-903-A9 Method B

Standards accessories:

• Rubber wheel

• Grinding wheel

• Weights

Datasheet
