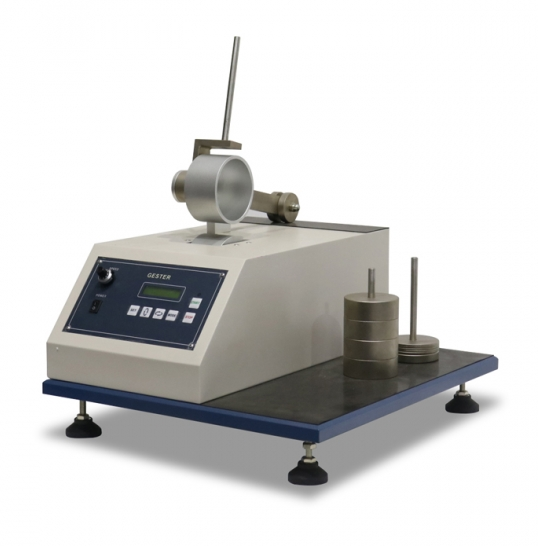

GESTER GT-K20 Magic Tape Closing Tester (1.0±0.1N/mm)

It is intended to press the two parts of the touch and close fastener together under controlled conditions, prior to determining the peel and shear strength.

Sample dimension: Length150mm, Width:20~50mm

Upper idling drum: Diameter 100±5 mm

Under driven drum: Diameter 100±5 mm

Drum width: 50mm

Test load: 1.0±0.1N/mm

Power supply: 1∮AC 220V 50/60HZ

Dimensions ( L x W x H ): About 40 cm ×40 cm ×50 cm

Weight: About 40kg

Standards:

DIN 3415, BS EN ISO 22776 , BS EN ISO 22777

SATRA TM123, GB/T3903.20, GB/T3903.21

Standards accessories:

• Weights

• Power Line
