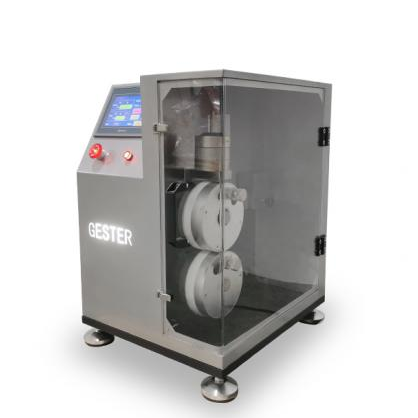

GESTER GT-K19-2 LCD Touch Control Hook Loop Fastener Fatigue Tester (1±0.1N/mm)

Control method: LCD Touch screen controlled

Sample dimension: Length 540±10mm

Upper idling drum: Diameter 162.5±0.5mm

Under driven drum: Diameter 160±0.5mm

Drum width: 110mm

Clamp slot: Width 4mm, length about 95 mm

Test speed: 60±5r/min

Reversal intervals: 30±5 s

Test load: 1±0.1N/mm ( Total Range 5N~ 90N)

Test times: 5000 cycles

Power supply: 1∮AC 220V 50/60HZ

Dimensions( L x W x H ): 55 cm ×45 cm ×65 cm

Weight: 57kg

Standards: DIN EN 1414
