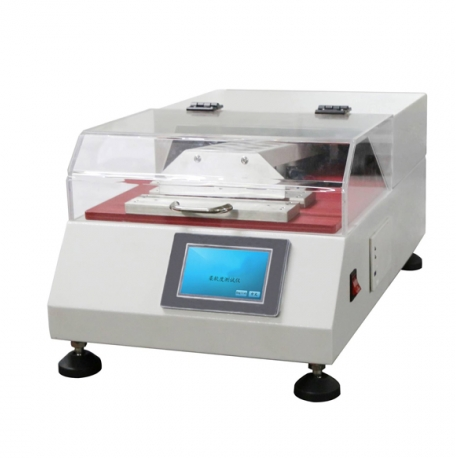

GESTER GT-CN05 Softness Tester (10-1000mN)

Used to determine the softness of high-grade toilet paper, tobacco flakes, fiber paper products and other materials.

Testing Range: 10-1000mN

Testing Resolution: 0.1mN

Indication Error: ≤±1% FS (20% or less of the upper limit of the measurement is allowed to exceed the specified range 1mN)

Indicative Variability: ＜1%

Test Head Stroke: (1.2±0.5)mm (can be set)

Test Head Press-in Depth: 8mm+0.5mm

Slit Width: 5mm; 6.35mm; 10mm; 20mm (Width error should not exceed ±0.05mm)

Testing Speed: (1.2±0.24)mm/s

Printer: Thermal printer

Power Supply: AC 220V±10V 50Hz

Dimensions: 560×340×250mm

Weight: 25kg

Standards: GB/T 8942
