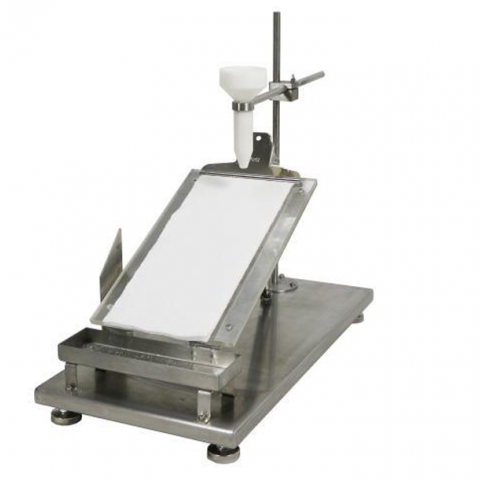

GESTER GT-CN03 Nonwovens Run-Off Tester

Used to test the overflow quantity of thin nonwoven, such as sanitary towel and diaper coating material.

Size of the Test Stand: 303×180mm

Angel of the Test Stand: Adjustable

Distance between 2 Lines of Reference: 250±0.2mm

Position of the Up Line of Reference: 3±0.2mm from the lower end of the table to define the position of the lower end absorbent medium

Position of the Up Line of Reference: Approximately 25mm from the upper end of the test piece to define the position of the discharge tube axis.

Inner Diameter of the Bleeder Tube: 5mm

Dimension: 5450×280×400mm

Weight: 10kg

Standards: Edana 152.0-99, ISO 9073-11, GB/T 24218.11
