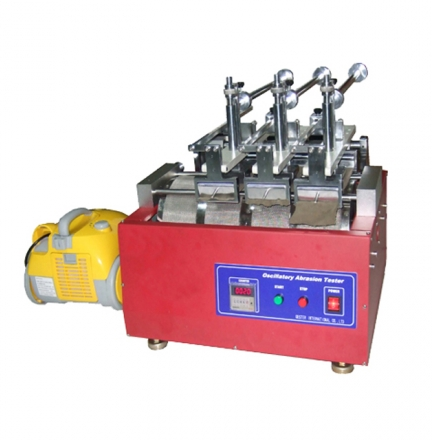

GESTER GT-C71 Wyzenbeek or Oscillatory Abrasion Tester

Workstations: 4groups

Testing heads: 50 x 50mm Bottom is rubber material

Speed: 90+/-1 rpm

Abrasion stage: Radian R80mm Length 300mm

Abrasion stroke:76+/- 2mm Camber length

Sample tension: 4 lbf 17.8N Can be adjusted

Designed for abrasion resistance of textile, leather and imitation leather, and can be reference as improving products quality.

Tension adjusting weights: 340g

Sample load: 3 lbf (13.4N) Can be adjusted

Load adjusting weights: 150g

Sample size: 73 x 245mm

Power supply: 1∮ AC220V 50/60Hz

Dimensions (L x W x H): 520 x 700 x 550mm

Weight: 80kg

Datasheet
