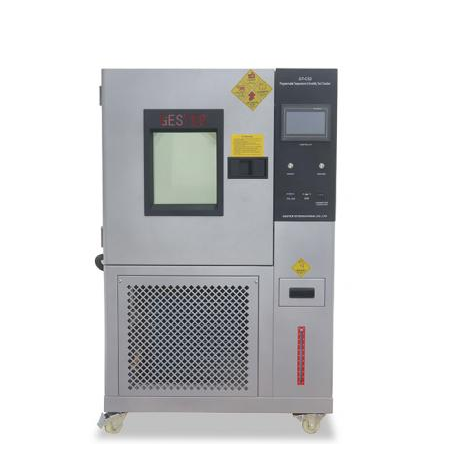

GESTER GT-C52 Temperature and Humidity Test Chamber (-60～150℃, 20%～98%)

Humidity Test Chamber

Temperature range: (optional, can be custom-made)

-20～150℃

-40～150℃

-60～150℃

Humidity range: 20%～98%, can be set

Rate of temperature increasing:

Room temperature～150℃

Room temperature～-20℃

Machine precision:

Control accuracy (test precision):

Temperature: +/-0.5℃

Humidity: +/-1%RH

Distribution accuracy (uniformity):

Temperature: +/-1.0℃

Humidity: +/-2%RH

Environment temperature: 5℃-28℃

Environment relative humidity: ≤85%RH

Power voltage: 220V AC(+/-10%), protect ground wire, ground resistance≤4Ω.

Frequency: 50+/-0.5Hz

Power switch: Air-break switch(40A, knife switch or outlet is prohibited to use.)

Power: 4.5KW

Humidification water: Resistivity(≥500MΩ)

Power supply: AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage.

Max loading capacity: 8KVA

Max operating current: 30A
