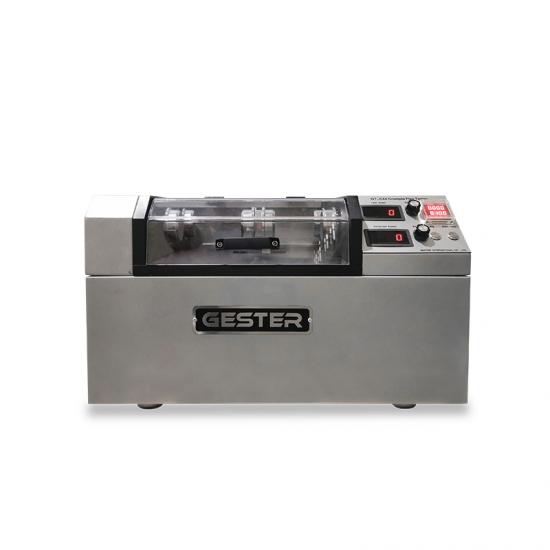

GESTER GT-C44 Crumple Flex Tester

Test Positions: 4

Disc: Diameter: 63.5mm; Width: 15mm;

Rotational Speed: 200±10r/min(3.33HZ+0.17HZ)

Rotational Angle: 90°±2°

Compression Speed: 152±4r/min(2.53HZ+0.07HZ)

Compression Stroke: 70mm

Cylinder Flanges Inner Side Distance: Max.180±3mm

Dimension of Test Piece: 220x190mm; Each piece in longitudinal in transverse direction

Sewing size of Test Piece: Cylindrical Shape, length 190 mm, inner diameter 64

Counting 0~999 999 times, settable

Dimensions (WXDXH): 57x39x42cm

Weight: ~60kg

Power Supply: 1 AC 220V 50/60Hz 3A

Standards accessories: Sampling plate x 1, Hose clamp x 8
