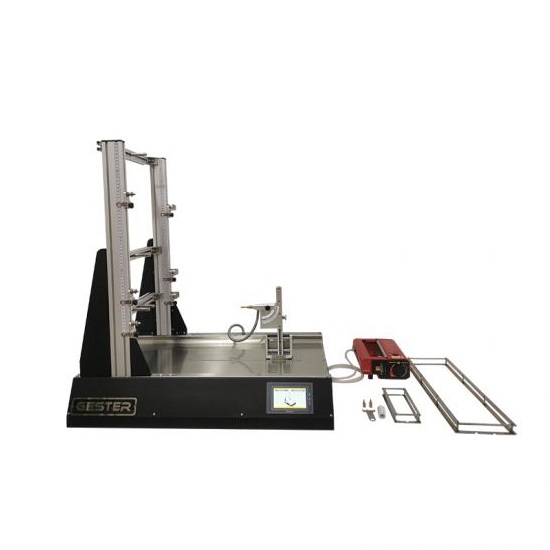

GESTER GT-C35B Vertical Combustibility Tester

Ignition Time Range: 0-99.99S; Precision: 0.01S

After-flame Time Range: 0-999.9S; Precision: 0.1S

Holder size: Different by standard requirements.

Nozzle angle: 0/30/90degree (adjustable)

System and Display: PLC system to control automatically

Power Supply: AC 220V 50/60HZ

Dimensions (L x W x H): 600 x 700 x 1200mm

Weight: 60kg

Accessories:

Flame height gauge

Gas feed device

Power line

(560x 150 mm) Pin Holder frame for BS EN ISO6941,BS EN 1102, BS EN 1103, BS EN 14878, GB/T 5456

(190x 70mm) Pin Holder frame for BS EN ISO6940, BS EN 1101,GB/T 8746

(190x 150mm) Pin Holder frame for EN ISO 15025, BS 5438
