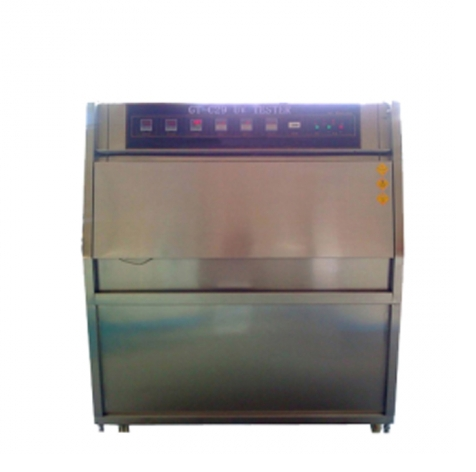

GESTER GT-C29 UV Accelerated Weathering Tester

Control Mode: PLC+Touch Screen Control

Temperature Range: RT+10℃~70℃

Humidity Range: ≥75%RH

Temperature Uniformity: ±3℃

Temperature Fluctuation: ±0.5℃

Test Chamber Space: 500 ×1140×400mm

Center Distance Inside Lamp: 65~70mm

Center Distance Between Specimen and Lamp: 55mm

Irradiance: 0.3~1.3W/m2, （Set irradiance on the touch screen）

Lamp: L=1200mm /40W, 8 (UVA/UVB, lifetime above1600h)

Black Panel Thermometer Testing Range: 30~80℃

Specimen Dimension: 75×150mm

Specimen Holder Number: 21

Depth of Water Channel: 25mm

Ultraviolet Wavelength:

UVA: 315-400nm

UVB: 280-315nm

Test Time: 0~999H (can be adjusted)

Spray: Automatic Spray Function

Power Supply: AC 220V 50/60HZ

Dimension(L×W×H): 1400×660×1550mm

Weight: 200 kg
