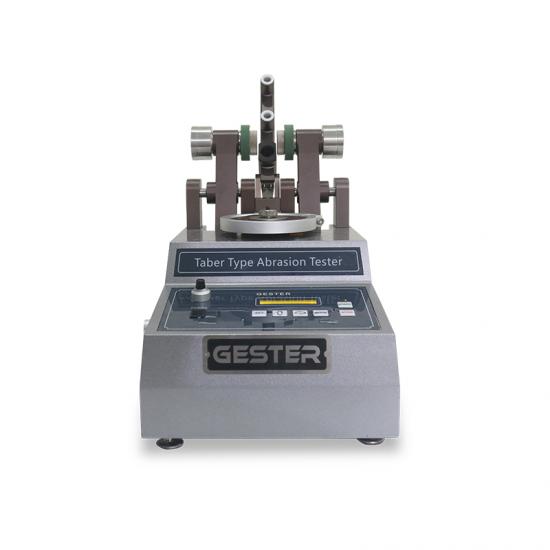

GESTER GT-C14A Taber Abrasion Resistance Test Machine

Test position: 1

3 kinds of load: 250g, 500g, 1000g

Wheel internal faces apart: 52.4±1.0 mm

Turntable speed: 60±2 rpm or 72 ±2rpm

Counter: LCD display 0-999999

Standards: ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, ISO 17076-1

Power supply: AC220V 50/60Hz

Dimensions ( L x W x H ): 44cm×37cm×27cm

Weight: 20kg

Standard Accessories: 250g weights 1set; 750g weights 1set; Paster pack of 5; Calibrase wheels CS-10 or H18 (Option); Power line 1pcs

Optional Accessories: Abrasive paper 150#; Refacing discs S-11; Calibrase wheels: CS-32,CS-10F,CS-17,CS-5,CS-35,H-22,H-10,H-38

Datasheet
