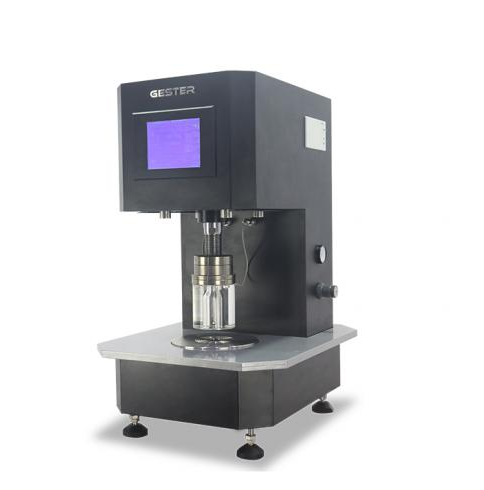

GESTER GT-C12B Pneumatic Bursting Strength Tester For Protective Clothing (1.50Mpa)

For determining the bursting strength of woven or knitted fabrics, non-woven, paper, protective clothing, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area.

Range: 1.50Mpa

The min. division value: 0.002Mpa

Test area: 7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100 cm2( Φ112.8mm) can be option

Thickness of rubber diaphragm: ≤2mm

Pressure speed: 10ml/min - 500ml/min

Maximun expansion height: 75 ± 0.02mm

Testing units: Kpa, kgf/ cm2, atm, mmHg, lb/in2 free shift

Test method:

Constant Rate Bursting, Constant Expansion,

Constant Pressure, Constant Time Bursting

Output: Printer, display output, and can be connected to the computer

Power supply: AC 220V 50/60HZ 200W

Dimensions: 600×400×530mm

Weight: 200 kg
