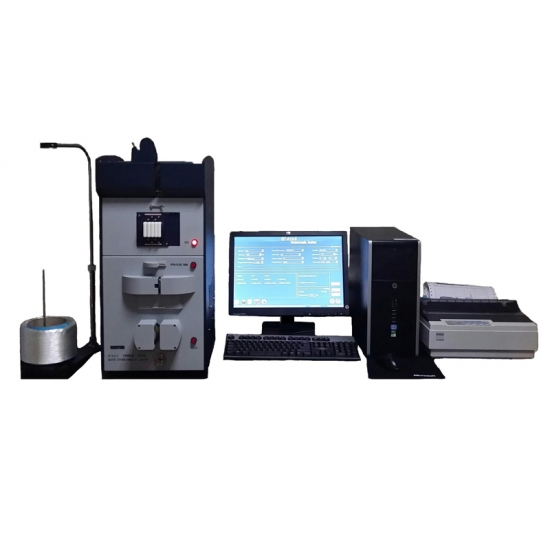

GESTER GT-A14C Chemical Filament Evenness Tester (10dtex-1670dtex)

Used to test linear density unevenness and corresponding structure character of filament

Capacitance monitor tank: 4

Measurement range: 10dtex-1670dtex

Testing speed: 4, 8, 25, 50, 100, 200, 400, 800m/min

Testing time: freely setting between 10sec-20min

CV (%) or (U%) testing range: 0.2%-100%

Variation length curve: cutting length 1.7cm-1500m

Wave spectrogram: 170pcs channel

Wave length coverage: 1cm-2950m

Air pressure range: 0.45 MPA-0.6MPA

Air compressing flux: 3-10m3/h

Power supply: 1phase AC 220V 50/60Hz

Standard accessories:

• Creel

• Computer

• Data cable

• Printer
