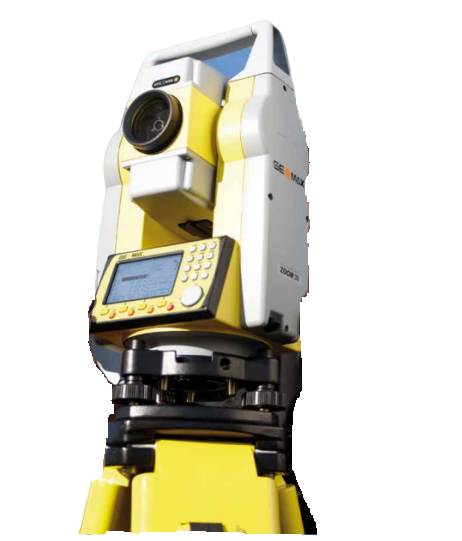

Leica Geomax ZOOM20-5” PRO A2 total station

Distance measurement on refelctor and 250 m reflctorless
Angle measurements
Accuracy: 5” (1.5 mgon)
Display resolution: 0.1” (0.1 mgon)
Method: Absolute, continuous, diametrical
Compensation: Quadruple axis
Distance measurements
Prism : 3,500 m / 2 mm + 2 ppm
Reflctorless: 2 mm + 2 ppm
Footprint: 8 x 20 mm**
Interface
Keyboard: Full alphanumeric
Display: High resolution (280 x160 pixel),
8 lines x 30 characters, illuminated
Data recording: Internal memory 50,000 pts
Interface: USB, serial & external power
Removable memory: USB memory stick
Power supply
Internal battery: Removable Li-Ion 4.4 Ah / 7.4 V
Operating time: 36 h (continous angle), 9 hours (continous distance
measurement every 30 s)
Physical specifiations
Weight : 5.1 kg (incl. battery & tribrach)
Operating temp. : – 30°C to 50°C***
Protection class: IP55 dust and waterproof
Humidity: 95 %, non-condensing
Plummet
Type Laser point, adjustable brightness
Accuracy 1.5 mm at 1.5 m instrument height
Operating system: Windows® Embedded CE

Datasheet
