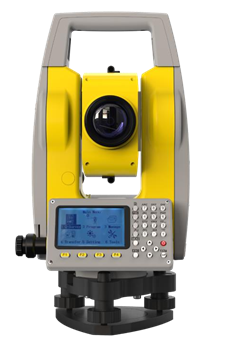

GEOMAX Zoom10 -2” FULL ELECTRONIC MACHINERY (Dual display) (Hiển thị hai màn hình)

* Lens

Magnification: 30x

- Field of view: 1o30' (2.7m at 100m)

- Shortest distance: 1.5m

* Display: 02 display screen resolution 280 x 160 pixels.

* Keyboard: Alphanumeric keyboard is convenient for data input.

* Operating system

- Dedicated operating system onboard

* Protractors

- Method of increasing readings

- Resolution: 0.1"

- ISO-17123-3 angle measurement accuracy: 2”

* Edge measurement: Measure edges with two separate Infrared and Laser measurement modes

Infrared measurement mode

Using high quality infrared measuring signal with coaxial technology nghệ

- Measuring distance with single mirror GPR1: 3000 m

Long range mode up to 6,000m with beam mirror.*ISO-17123-4 standard edge measurement accuracy:

Accurate measurement mode: 2mm+2ppm

- Quick measurement mode: 3mm+2ppm

- Continuous tracking mode: 3mm+2ppm

- Measurement time: 0.8s/point

Laser measuring mode

- Using high quality Laser signal with coaxial technology

- Mirrorless measuring distance under standard conditions: 350m

- Laser edge measurement accuracy: 3mm + 2ppm

* Data management:

Internal memory: 20,000 measuring points, with 8G memory card for storage space of doses up to millions of points

- Data is transferred via USB cable port, USB memory stick, Bluetooth without a computer

- Data format: GSI/DXF/ASCII

* Tilt compensation mode

- Tilt compensation system: 2-axis tilt compensation mechanism

- Tilt compensation range: 3'

- Tilt compensation accuracy: 1".

* Illuminate the mind

- Laser focus can adjust the laser intensity

- Centering accuracy: 1.5mm at 1.5m machine height

*Usage source

- Rechargeable battery: Lithium-ion, 7.4V / 3.0Ah

- Time to measure angles and sides: 16 hours continuously

* Environmental conditions

- Working temperature: - 30oC to +50oC

- Dust and water resistance: according to IP54 . standard

- Humidity: 95%, no standing water.

* Machine weight (compact machine)

- Weight including battery and base: 5.1kg

* Application

- Survey measurement, Transfer design point to field, Measure intersection, Elevation transmission, Area measurement, volume calculation, Indirect distance measurement, Indirect altimeter, Offset mirror shift measurement, Public positioning standard curve, Curved plug.

Accessories included with the machine:

01 storage box, 01 rain cover, 01 tool for tuning, USB data outlet, 02 ZBA10 7.4V Lithium-ion 7.4V/4.4Ah batteries, 01 ZCH10 charger, 01 set of user manuals, 01 Smartphone Clip
