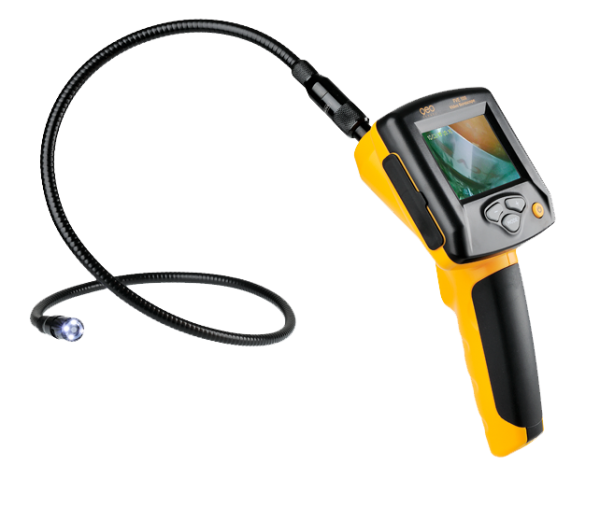

GEO-Fennel FVE 100 Video Borescope (-10°C~+50°C, 100 cm, 300,000 Pixel)

Temperature range: -10°C to +50°C

Display video output (to TV): PAL / NTSC

Power supply: 3.7 V / 2000 mAH / Li-Ion

Weight: 0.584 kg

Extended size: 240 x 160 x 100 mm

Humidity range: 15 – 85 % RH

Operating time: 4 h

Bend radius of probe: 6 cm

Probe length: 100 cm

Display CMOS Image sensor: 300,000 Pixel

Dust / water protection: IP 67

Display image transmission to LCD: Flexible gooseneck

Display display size: 3"

Camera head light source: LED

Camera head diameter of camera head: 17 mm

Camera head viewable distance: 5 - 15 cm

Camera head focal length: 6 - 7 cm

Camera head viewable angle: 0° and 180°

Display resolution: 320 x 240 pixel
