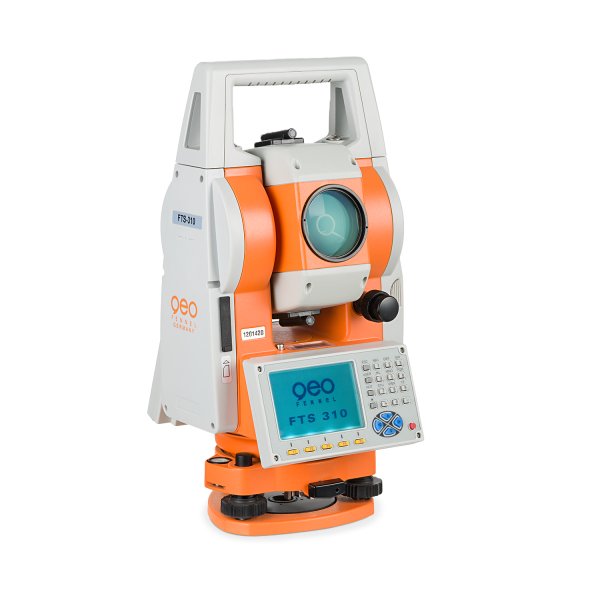

GEO-Fennel FTS 310 Total Station

Laser class: 2

Resolving Power: 3"

Working range: 1.5 - 300 m (Reflectorless), 1.5 - 500 m (Reflective tape target), 1.5 - 5000 m (Single standard prism)

Weight: 6.5 kg

Extended size: 190 x 210 x 350 mm

Temperature range: -20°C to 55°C

Operating time: 2 x 6 h

Visible laser beam: ± 1.5 mm / 1.5 m

Accuracy: +/- 2mm + 2ppm (working range), 2" (angle measurement)

Field of View: 1°30'

Circular bubble: 8' / 2 mm

Minimum reading resolution: 1" / 5" / 10"

Dust / water protection: IP 56

Plate level: 30" / 2 mm

Range: ± 3°

Axis: 2

Angle units: 100 % / 360° / 400 gon

Image: Erect

Shortest focussing distance: 1.5 m

Telescope magnification: 30 x

Objective diameter: 45 mm

Power supply: NiMH Akku

Datasheet
