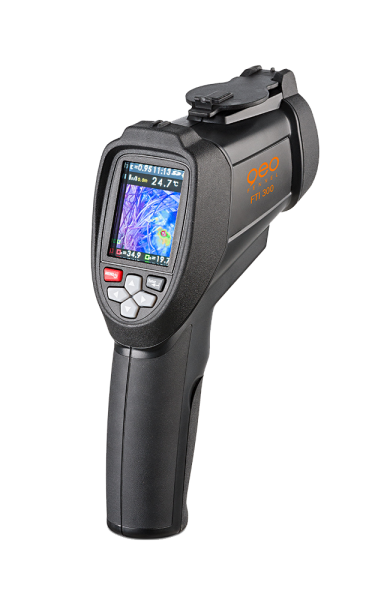

GEO-Fennel FTI 300 Thermal Imaging camera (-20°C~ +300°C)

Temperature range: -20°C to +300°C

Thermal sensitivity: < 0.15°C (150 mK)

IR sensor resolution: 32 x 31 Pixel

Field of view (FOV): 40° x 40°

Display: 2.2" TFT colour LCD, 320 x 240 pixel

Colour palettes: greyscale (white hot), greyscale (black hot), ironbow, rainbow, rainbow (high contrast), hot metal

Additional memory: MicroSD card 8 GB

Operation languages: DE, EN, FR, ES, IT

Focusing: fixed

Accuracy: ± 2% of the reading or ± 2°C (at 25°C)

Memory size: 6000 pictures

Measurement cursors: 3 (centre, max, min)

File format: .bmp

PC interface: USB 2.0

PIP (Blending fusion): IR image with visible image in 6 steps (0 – 100%)

Extended size: 205 x 155 x 62 mm

Power supply: 3.7 V Li-Ion battery

Weight: 410 g
