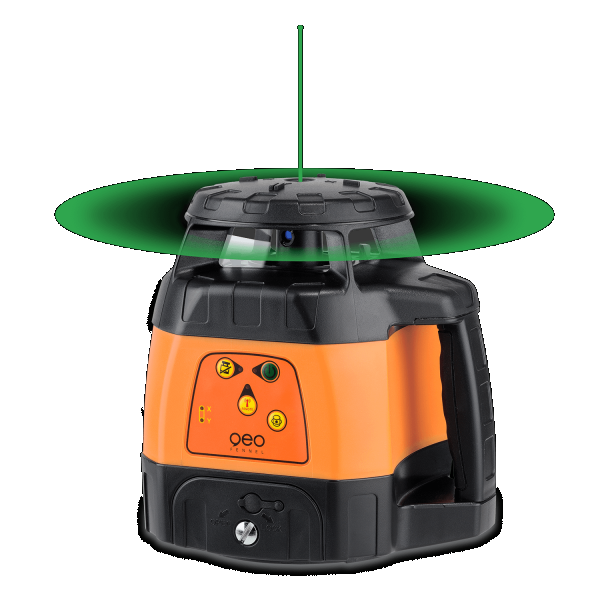

GEO-Fennel FLG 245HV-GREEN Tracking Rotating Laser (±5°; Green LD)

Laser diode: green

Self-levelling: horizontal / vertical

Self-levelling range: ± 5°

Accuracy horizontal: ± 1.0 mm / 10 m

Accuracy vertical: ± 1.5 mm / 10 m

Working range without receiver: Ø 60 m

Working area with FR 77-MM: Ø 1000 m

Working area with FR 77-MM Tracking: Ø 1000 m

Working range tracking function: 60 m

Working range remote control: IR 100 m

Grade: manual

Slope setting manual X-Axis: ± 5° (± 9%)

Slope setting manual Y-Axis: ± 5° (± 9%)

Laser class: 2

Rotating speed rpm: 300, 800

Operating time: 24 h

Power supply: NiMH

Dust / water protection: IP 54

Rotating w/o receiver Ø: Ø 40 m

Scanning w/o receiver : 60 m (radius)

90° plumb beam up: yes

Temperature range: -20° to +50°C

TILT-function: yes

Tracking function: yes

Remote control function (on/off): yes

Laserdot mode: yes

Scanning: 2 step

Supplied with:

· Receiver FR 77-MM Tracking with clamp for levelling staff

· Remote control

· Rechargeable batteries

· Charger

· Battery case for alkaline batteries

· Wall mount

· Floor mount

· Magnetic target

· Laser glasses

· Carrying case
