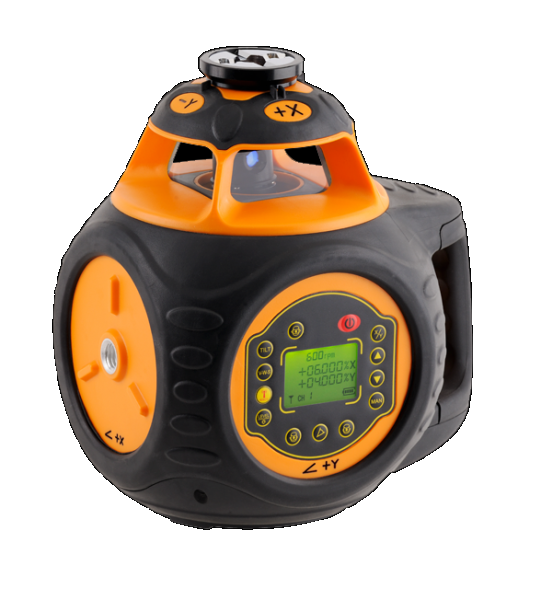

GEO-Fennel FL 505HV-G Rotating Laser (± 8°; Red LD; FR 77-MM)

Laser diode: red

Self-levelling range: ± 8°

Accuracy horizontal: ± 0,5 mm / 10 m

Accuracy vertical: ± 1,0 mm / 10 m

Working range without receiver: Ø 40 m

Working area with FR 77-MM: Ø 400 m

Working range remote control: 150 m

Grade: digital

Horizontal slope setting x-Axis: ± 10.000%

Horizontal slope setting Y-Axis: ± 10.000%

Vertical slope setting X axis: ± 10,000 %

Vertical slope setting Y(Z) axis: horizontal self-levelled

X and Y-Axis: ∑ ± 14 %

Laser class: 2

Rotating speed rpm: 300, 600, 1100

Operating time: 40 h

Power supply: Li-Ion, intelligent, Alkaline

Dust / water protection: IP 66

Weight (instrument only): 3,85 kg

Remote control channels: 9

Rotating w/o receiver Ø: Ø 40 m, Ø 60 m

Scanning w/o receiver : 60 m (radius)

Scanning range: 0°, 10°, 45°, 90°, 180°

Temperature range: -10°C to +50°C

Supplied with:

· Receiver FR 77-MM with clamp

· 2-Way RF Remote control

· Li-Ion battery & charger

· Vertical mount

· Telescope

· 360° horizontal fine adjustment bracket

· Container
