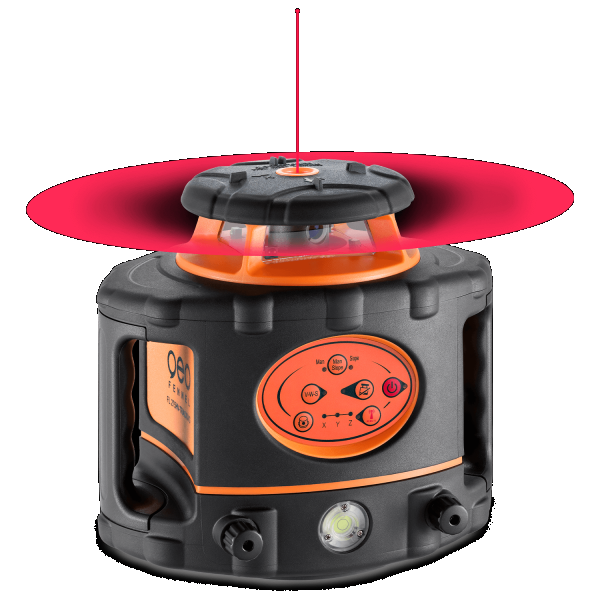

GEO-Fennel FL 275HV-TRACKING Rotating Laser (± 5°; Red LD; FR 77-MM TRACKING)

Laser diode: red

Self-levelling: horizontal / vertical

Self-levelling range: ± 5°

Accuracy horizontal: ± 0.5 mm / 10 m

Accuracy vertical: ± 1.0 mm / 10 m

Working range without receiver: Ø 40 m

Working area with FR 77-MM: Ø 400 m

Working area with FR 77-MM Tracking: Ø 400 m

Working range tracking function: 110 m

Working range remote control: IR 100 m

Grade: manual

Slope setting manual X-Axis: ± 5° (± 9%)

Slope setting manual Y-Axis: ± 5° (± 9%)

Laser class: 2

Rotating speed rpm: 300, 800

Operating time: 50 h

Power supply: Li-Ion

Dust / water protection: IP 66

Rotating w/o receiver Ø: Ø 40 m

Scanning w/o receiver : 60 m (radius)

90° plumb beam up: yes

Temperature range: -20° to +50°C

TILT-function: yes

Tracking function: yes

Remote control function (on/off): yes

Laserdot mode: yes

VWS function: yes

Scanning: 4 step

Supplied with:

· Receiver FR 77-MM TRACKING with clamp for levelling staff

· Remote control

· Rechargeable batteries

· Charger

· Battery case for alkaline batteries

· Floor mount

· Magnetic target

· Laser glasses

· Carrying case
