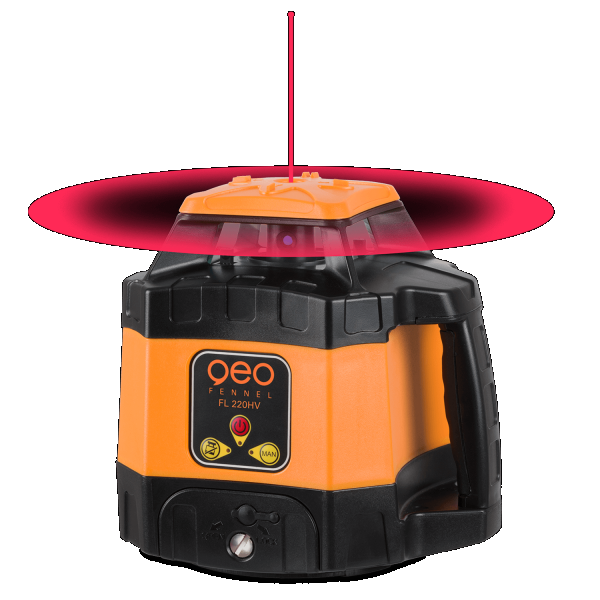

GEO-Fennel FL 220HV Rotating Laser (± 5°; Red LD; FR 45)

Laser diode: red

Self-levelling: horizontal / vertical

Visible laser beam: red

Self-levelling range: ± 5°

Accuracy horizontal: 1,0 mm / 10 m

Accuracy vertical: 1,5 mm / 10 m

Working range without receiver: Ø 30 m

Working area with FR 45: Ø 400 m

Working area with FR 77-MM: keine Angabe

Grade: keine

Laser class: 2

Rotating speed rpm: 600

Operating time: 20 h

Power supply: NiMH

Dust / water protection: IP 54

Manual mode: yes

90° plumb beam up: yes

Temperature range: -20° to +50°C

TILT-function: yes

Supplied with:

∙ Receiver FR 45 with clamp

∙ Rechargeable battery (NiMH)

∙ Intelligent battery charger

∙ Battery case for alkaline batteries

∙ Carrying case

Manual

Datasheet
