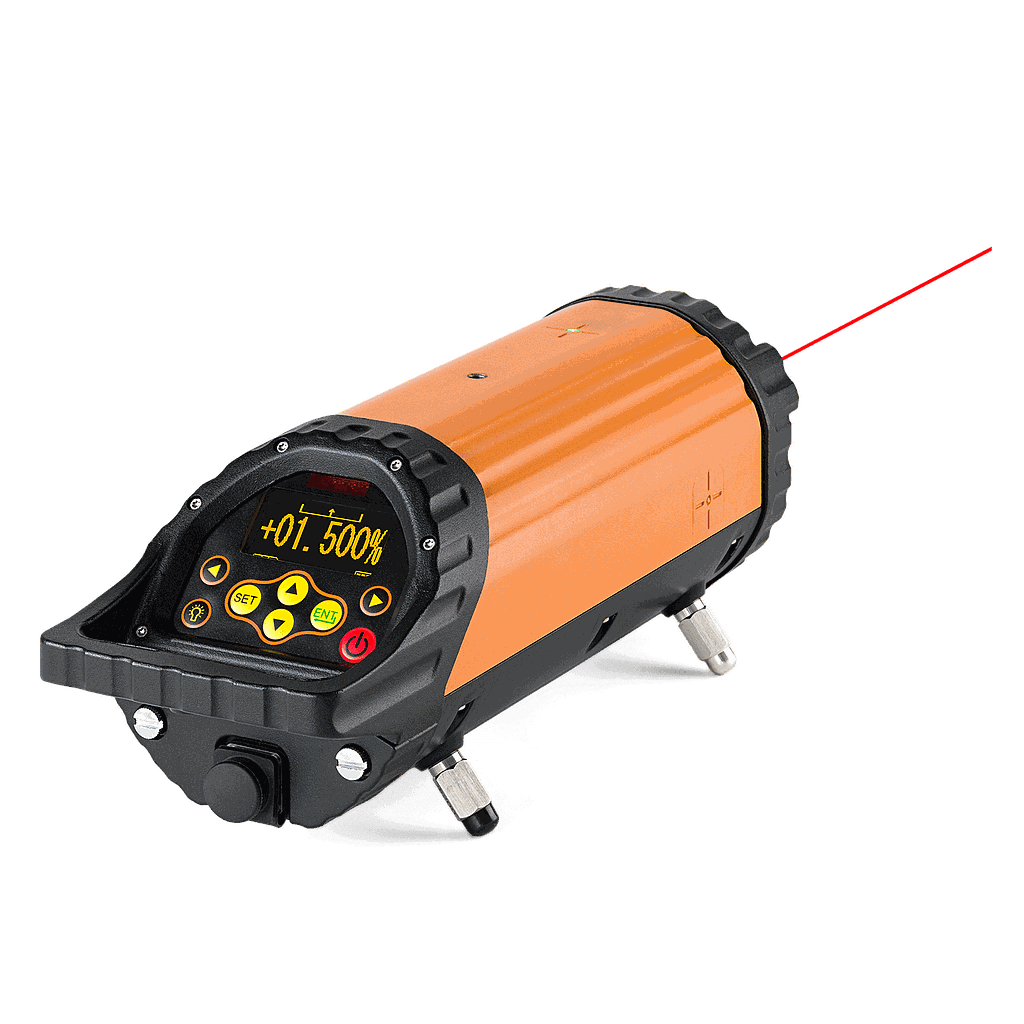

GEO-Fennel FKL 55 (LC 2) Pipe laser (120 m; ± 5°; Red LD)

Laser class: 2

Laser diode: red

Beam diameter: 10 mm

Working range: up to 120 m

Grade range: -20 % to +30 %

Self-levelling range: ± 5°

Minimum display reading: 0.000 %

Horizontal accuracy: ± 5 mm / 100 m

Left / right scanning: ± 4°

Operating time: 24 h (NiMH)

Power supply: 4 x D 8000 mAh NiMH (optional 4 x D Alkaline)

IR remote control range front / back: 100 m / 50 m

Temperature range: -20 °C to +50 °C

Dust / water protection: IP 68

Dimensions: Ø 132 mm, length 380 mm

Weight (laser only): 6 kg
