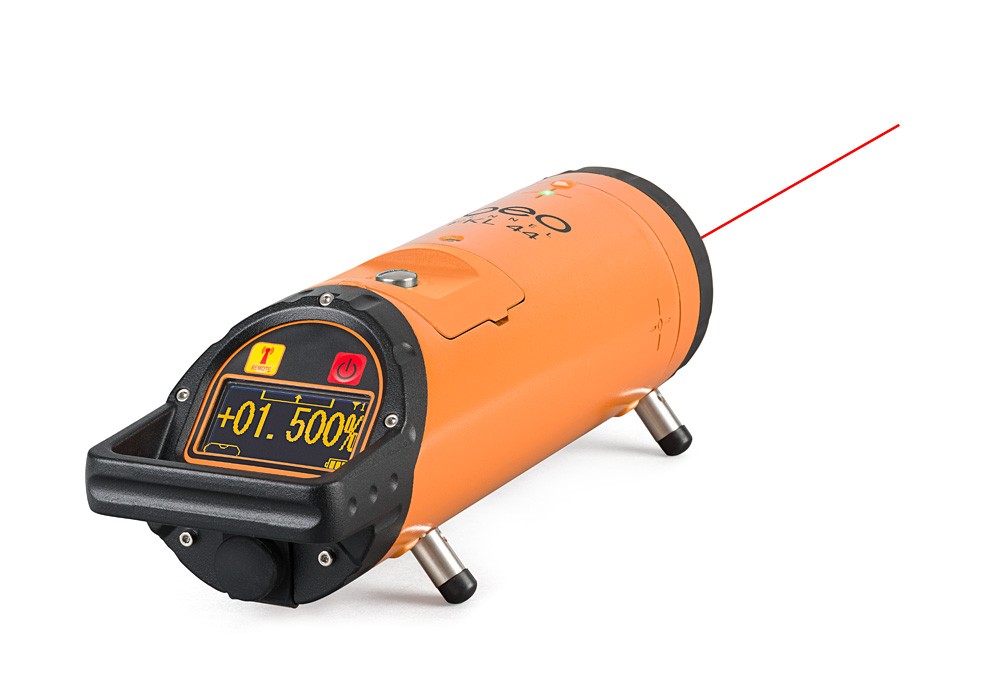

GEO-Fennel FKL 44 Pipe Laser (120 m; ± 5°)

Working range: 120 m

Accuracy horizontal: ± 5.0 mm / 100 m

Self-levelling range: ± 5°

Grade range: -20% to +30%

Left / right tracking: ± 10°

Laser diode: red

Laser class: 2

Beam diameter: 10 mm

Minimum display reading: 0.000 %

Working range remote control: 50 m (back), 100 m (front)

Dust / water protection: IP 68

Operating time: 24 h

Power supply: 8000 mAh Li-Ion

Temperature range: -20°C to +50°C

Weight (instrument only): 28 kg

Extended size: Ø 96 mm, L = 332 mm
