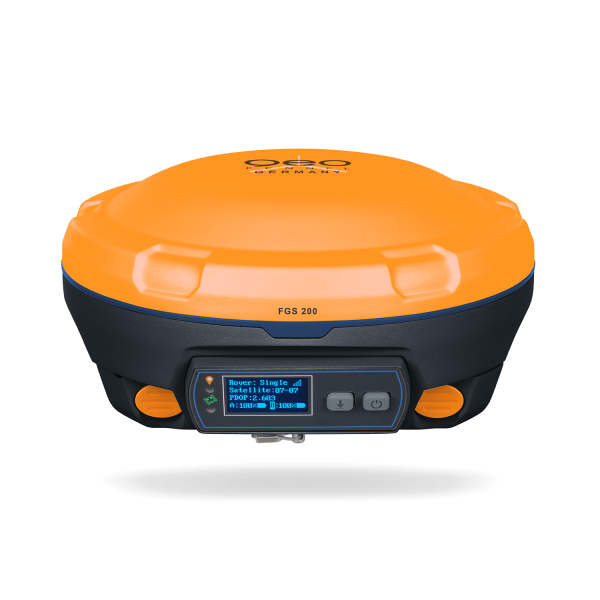

GEO-Fennel FGS 200 GNSS-System

Operating time: 15 h

QZSS: QZSS, IRNSS

Extended size: Ø 15.5 cm × 7.3 cm

Data Communication Wi-Fi: yes

Accuracy: 2.5 mm + 0.5 ppm, 5 mm + 0.5 ppm, 8 mm +1 ppm, 15.0 mm + 1 ppm vertical

Correction data I/O: RTCM 2.x, 3.x, CMR, CMR+

GALILEO: E1, E5a, E5b, AltBOC

Dust / water protection: IP 67

GPS: L1 C/A, L2C, L2P, L5

Channels: 574

GLONASS: L1 C/A, L1P, L2 C/A, L2P

BEIDOU: B1, B2, B3

Shock and protection: Withstands 1.5 m free drop onto hard surface

Weight: 1.2 kg

Bluetooth: 4.0, for Windows and Android

SBAS: WAAS, EGNOS, MSAS, GAGAN

Power supply: 2 x 3.400 mAh
