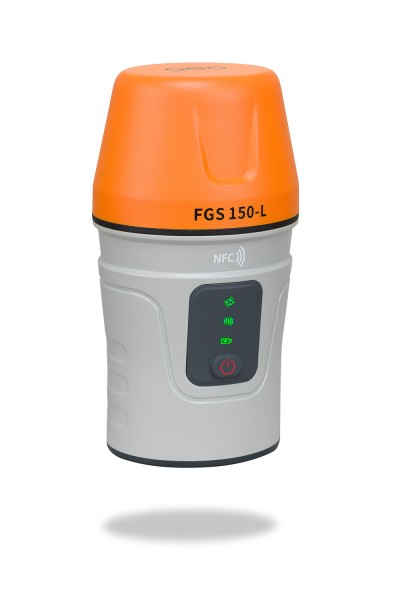

GEO-Fennel FGS 150-L GNSS-System (Without tablet)

Operating time: 20 h

Bluetooth: 5.0, Windows & Android

Accuracy static: 2.5 mm + 0.5 ppm RMS horizontal, 5 mm + 0.5 ppm RMS vertikal

Accuracy SBAS: 0.5 RMS horizontal, 0.8 RMS vertikal

Accuracy Stand-Alone: 1.5 m 3D RMS

Power supply: 5/9 V / 1.45 W

Extended size: 80 x 70 x 150 mm

Weight: 0.38 kg

Charging time: 4 h

BEIDOU: B1l, B2l, B3l,B1C, B2a, B2b

Storage temperature: -30°C bis +60°C

Dust / water protection: IP 67

Operation temperature: -20° C bis 50°C

GLONASS: G1, G2, G3

SBAS: L1C/A

QZSS: L1C/A, L2C, L5, L1C

GALILEO: E1, E5a, E5b, E6c, E5 AltBOC

GPS: L 1C/A, L1C, L2P, L2C, L5

Channels: 1590

Accuracy DGPS: < 0.4 m 3D RMS

Accuracy RTK: 8.0 mm + 1 ppm horizontal, 15.0 mm + 1 ppm vertical

Protocol: RTCM2.X, 3.X, CMR(GPSonly), CMR+(GPSonly)
