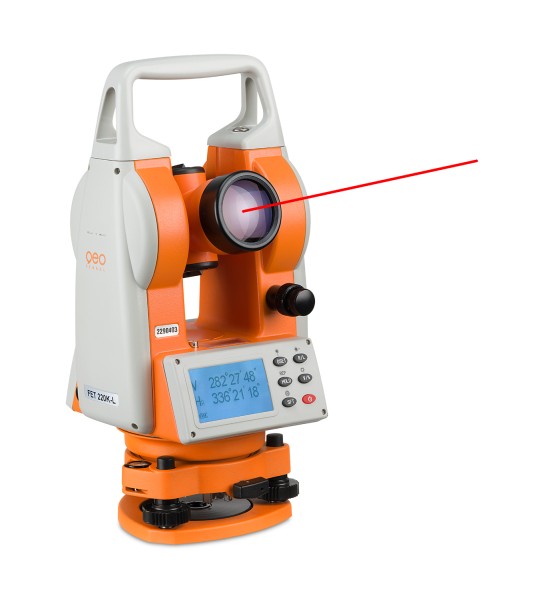

GEO-Fennel FET 220K-L Electronic Theodolite

Dust / water protection: IP 54

Laser plummet: laser class: 2

Weight: 4.2 kg

Minimum reading: 1" (0.2 mgon)

Accuracy: 2" (0.6 mgon)

Laser plummet: spot size: ± 1.5 mm auf 1.5 m

Tripod: removable

Max. visible distance: 180 m

Laser point finder: focusable

Compensator: 2-axis compensator

Plate level: 30" / 2 mm

Measuring units: 400 gon / 360°

Laser class: 2

Weight (instrument only): 4.2 kg

Angle measurement: absolute encoder

Shortest focussing distance: 1.5 m

Telescope magnification: 30 x

Optical axis tolerance: 5"

Objective diameter: 45 mm

Circular bubble: 8' / 2 mm

Temperature range: -20° to +50°C

Operating time: 10 h

Power supply: NiMH

Beam diameter: 6 mm / 100 m
